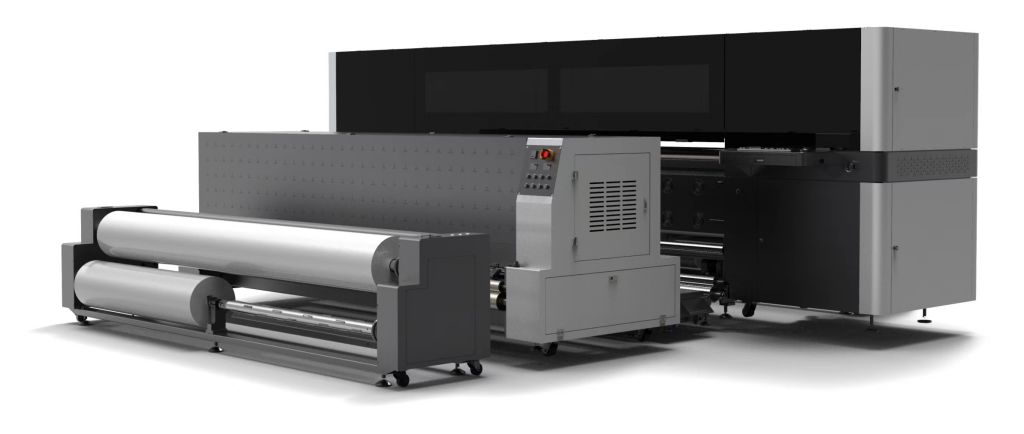

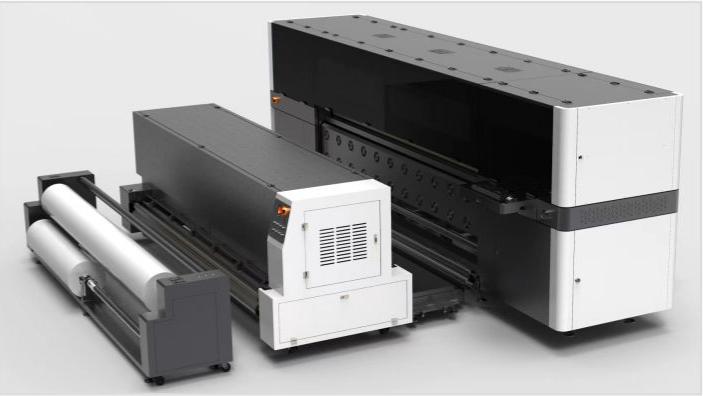

    Universal T3 Sublimation Direct-to-Substrate Printer

    ?Industrial-grade high-speed digital printing system? – A flagship model designed for high-volume production of chemical fiber materials. It embodies ?stability, precision, setting a new benchmark for professional soft signage.


    • Inline technology

    • Fluorescent ink technology

    • 8-color option

    • Textile inkjet printing

    1. Industrial-grade S3200-A3 print heads better meet the demands of industrial-scale production;

    2. With an upgraded body design featuring a stylish and refined appearance and superior craftsmanship, it is the ideal high-performance printer for professional users and high-volume chemical fiber printing;

    3. Equipped with a pneumatic tension control system, it adapts to printing on various types of chemical fiber materials;

    4. Both sides of the printer are built with steel plates and full CNC machining technology, ensuring the stability and parallelism of the transmission system to prevent media wrinkling during feeding;

    5. Steel beams and linear motors are equipped to guarantee the stability and durability of the carriage operation;

    6. A newly developed software platform is adopted, enabling faster and more reliable data transmission and laying the foundation for high-speed printing;

    7. The automatic carriage lifting system allows better adaptation to printing on media of different thicknesses;

    8. It is equipped with a variable frequency adjustable adsorption system;

    9. It features an integrated intelligent servo control unit for synchronized feeding and take-up;

    10. Application fields: Flag fabric, curtains, seat cushions, elastic rotary fabric, wall coverings, chemical fiber light box fabric, heat transfer paper, T-shirts, etc.


    Model

    FA3208-EB

    Type of print head

    Industrial-grade S3200

    Print head quantity

    8-EB two rows

    Draft mode

    276m/h

    Production mode

    198m2/h

    High-precision mode

    148m/h

    Droplet volume

    3.5Pl.

    Print head control

    Software-adjustable voltage

    Printing width

    3300 mm

    Printing resolution

    2400dpi

    Ink type

    Dispersed direct jet ink

    Color profile

    KCMY/KCMY2/KCMYLcLm/KCMYLcLm2/KCMYYMCK

    Drying device

    15KW pre-drying/27KW/Self-made 10.8KW infrared drying

    Ink supply system

    Continuous ink supply system

    Media absorption

    Table vacuum absorption (optional)

    Table pressure

    15kg/m2

    Power supply

    380 V±10% 50 HZ

    Machine size

    6200mm × 5500mm ×2115mm

    Machine weight

    6500 kg

    Printing interface

    USB

    Power supply

    220 V±10% 50 HZ

    Environmental requirements

    Temperature: 150℃ ~ 300℃; relative humidity: 40% ~ 80%

    Other features

    Anti-collision, colored ink pressing, automatic cleaning, two-stage color development, degassing (optional), platform adsorption (optional)
