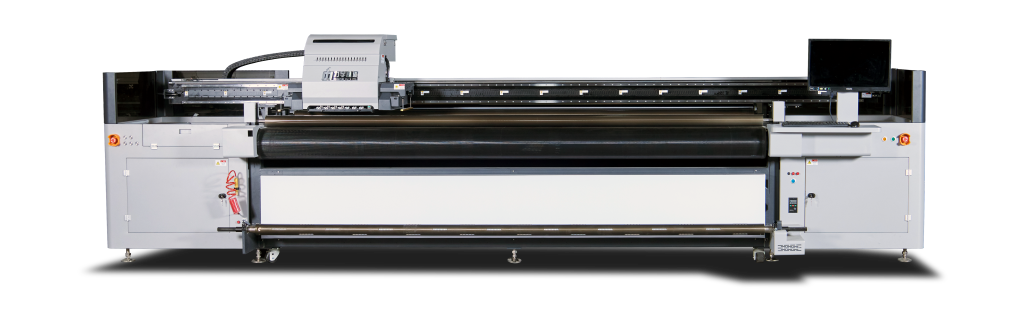

As an industrial UV hybrid printer, Galaxy H3-E handles both flexible and rigid materials, achieves zero material waste, and delivers flawless precision on long-format prints. It replaces multiple devices, serving as the versatile expert for advertising signage and industrial graphics applications.
3D texture technology
8-color option
High-precision UV technology
Single-sided dual-printing technology
1. The UV hybrid printer can print accurately without calculating measurement compensation, and the printed materials are available immediately after printing; guiding cloth is not a must during printing, which can save materials and reduce costs;
2. The printing media can be both flexible and rigid, which has a good versatility;
3. Flexible materials are wrinkle-free, and rigid materials are warp-free when printing;
4. It allows printing long-format materials without deformation or deviation.
Model | DSL3200 |
Print technology | Piezoelectric inkjet printing technology (DOD) |
Type of print head | RICOH GEN5/RICOH GEN6/KM10241/KM1024A |
Print head control | Use software to adjust the temperature and voltage of the print head |
Print head configuration | KCMYx2/KCMYx3/KCMYLcLm×2/KCMY//KCMYLcLm (white as optional) |
Printing width | 3.20 m |
Printing resolution | 2880 dpi |
Maximum Printing Speed | 150m2/h |
Ink type | UV ink |
Color profile | KCMYLc Lm (optional)/KCMYLc LmWV (optional) |
Ink scraping device | Available |
Ink supply system | Automatic continuous ink supply with vacuum negative pressure |
Drying device | LED UV lamp curing |
Package size | 6340x1938×2168 mm |
Machine size | 5580x1730x1560mm |
Machine weight | 2.5 tons |
Printing interface | PCIE system |
Power supply | Main unit: 220V±10% 50 HZ 3300 W; fan/UV lamp: 220 V±10% 50 HZ 5000 W |
Environmental requirements | Temperature:15℃ ~ 30℃; relative humidity: 40% ~ 80% |
RIP software | Printfactory/Caldera |
